Description

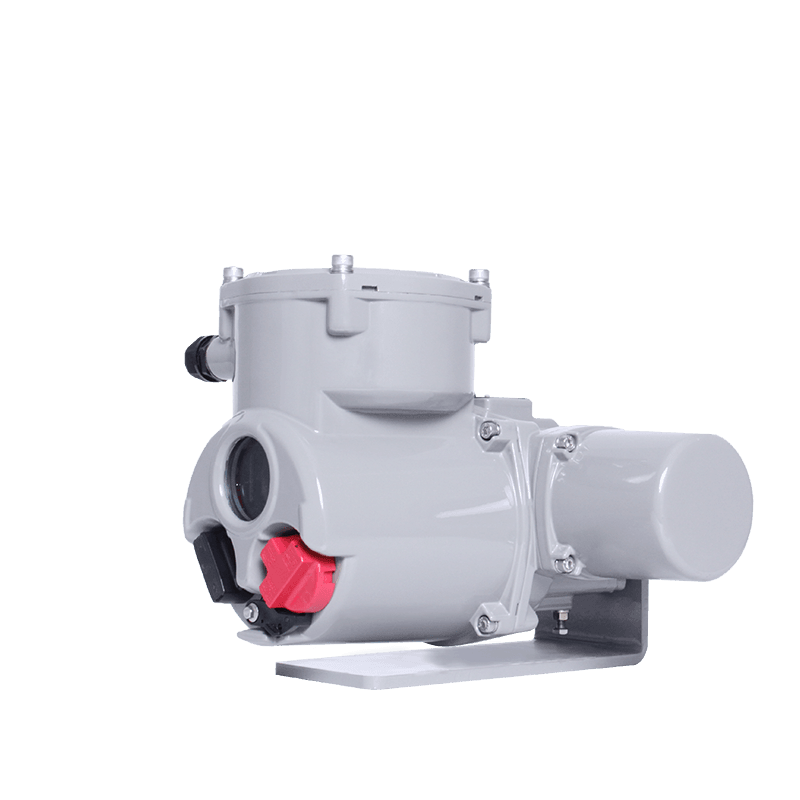

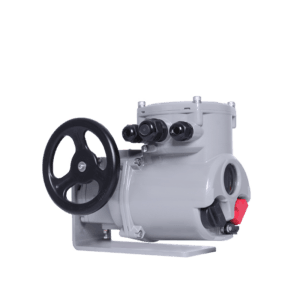

Introduction of Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type
The Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type delivers reliable quarter-turn valve automation for demanding industrial environments. Engineers craft this actuator with a compact footprint that pairs light weight and rugged durability. Furthermore, its refined housing encloses a robust 400 N.m torque output for quarter-turn service. Notably, the unit runs at 0.5 rpm while drawing only 140 watts of rated power. This efficiency flows from an advanced motor coupled with a precision gear train. In addition, the actuator accommodates valve stems reaching 32 mm in diameter without modification. The ISO 5211 compliant mounting flange also simplifies integration with standard valve interfaces. Altogether, these mechanical attributes deliver installation flexibility across diverse piping layouts.
Beyond raw performance metrics, the Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type integrates a truly non-intrusive setup interface. Operators configure every parameter through magnetic switches mounted on the exterior surface. Consequently, the IP67-rated enclosure remains fully sealed throughout its entire service life. Moreover, dual sealing barriers add an extra shield against moisture and dust ingress. This design philosophy extends to certified explosion-proof variants that meet Ex db IIB T4 Gb standards. Similarly, the dust ignition-proof variant meets Ex tb IIIB T130°C Db for powder-handling environments. As a result, the actuator performs safely in hazardous zone applications without any compromise.
The Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type supports an extensive range of control modes for diverse automation architectures. Specifically, users command the actuator through local pushbuttons, remote dry contacts, or 4–20 mA analog signals. Additionally, digital fieldbus protocols including Modbus, Profibus-DP, HART, DeviceNet, and FF connect the unit to plant-wide networks. Meanwhile, a dedicated ESD override function provides failsafe emergency operation when critical. Four configurable status relays plus a fault alarm contact keep operators fully informed at all times. Ultimately, this intelligent actuator bridges the gap between simple on-off duty and fully networked smart plant environments.
BJ40-Q3 Part-turn Intelligent Electric Actuator Product Specifications
- Valve Position Detection: Absolute encoder
| Power supply | Output Speed (rpm) | Rated Torque (N.m) | Motor Power (Class F) (W) | Rated Current (A) | Maximum Valve Stem Diameter(mm) | Manual Speed Ratio | Weight (kg) |
| Three-phase | 0.5 | 400 | 140 | 0.45 | 32 | 80 | 13.9 |
| 1 | |||||||
| Single-phase | 0.5 | 400 | 140 | 1.2 | 32 | 80 | 13.9 |
| 1 |
LCD Dot Liquid Display
A high-resolution LCD dot liquid display serves as the primary human-machine interface on the Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type. This screen renders valve position data in clear numeric values alongside intuitive graphic indicators. Furthermore, the display presents limit settings, operating status flags, and diagnostic fault codes in a logically organized layout. Consequently, operators grasp the complete actuator state within a single glance at the panel.
The display supports multi-language character rendering that accommodates global deployment requirements with ease. Chinese characters, alphanumeric text, and graphic symbols all appear with crisp clarity across the backlit screen. Meanwhile, the dot liquid technology ensures wide viewing angles readable under direct sunlight or low-ambient conditions. Beyond routine status display, the screen guides users through setup menus with step-by-step prompts. As a result, commissioning personnel complete parameter configuration without consulting printed manuals on site. In addition, diagnostic messages pinpoint fault conditions precisely rather than flashing generic error codes. Ultimately, this intuitive display transforms complex configuration into a self-contained walk-up experience.
Absolute Encoder
Precision position sensing forms the foundation of dependable valve automation for critical process loops. The Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type employs an absolute encoder that tracks valve position with exceptional accuracy. Unlike incremental encoder systems, this unit retains position data even after a complete power loss. Consequently, the actuator never requires battery-backed memory or homing routines upon restart. In addition, the encoder delivers real-time feedback across the full 0–100 degree stroke range with unwavering precision.
This absolute sensing technology eliminates drift and cumulative error common in potentiometer-based feedback circuits. Instead, a digital optical disc reads angular displacement directly at the output shaft. Therefore, mechanical wear and temperature fluctuations exert no influence on measurement accuracy. Furthermore, the solid-state encoder construction withstands vibration and shock loads typical of heavy industrial settings. The system also provides a 4–20 mA position retransmission signal with 0.5 percent linearity for plant-wide control integration. Beyond basic position feedback, the encoder supports configurable intermediate position alarms that enhance overall process visibility.
Non-Intrusive Design
Field technicians welcome the non-intrusive configuration approach that this intelligent quarter-turn actuator brings to every installation. Magnetic reed switches embedded beneath the sealed cover replace traditional pushbuttons and selector knobs. Consequently, the enclosure never requires opening during routine commissioning or calibration work. In other words, the IP67 integrity stays intact across every configuration cycle. Furthermore, this sealed architecture eliminates moisture ingress that plagues conventionally buttoned actuators in humid environments.
The setup workflow progresses through intuitive menu layers on the built-in display. Operators navigate parameters with simple magnetic taps without any physical contact. Additionally, bidirectional infrared communication ports enable wireless data exchange with handheld configurators. As a result, field teams complete commissioning tasks faster while maintaining full environmental protection. Moreover, the non-intrusive design slashes long-term maintenance costs by preventing seal degradation from repeated cover removal. Ultimately, this approach preserves both safety ratings and operational readiness across the entire equipment lifecycle.
Application Scenarios
The Electric Actuator BJ40-Q3 Quarter-turn Intelligent Type proves its versatility across a broad spectrum of demanding process industries worldwide. Power generation plants deploy these actuators on cooling water butterfly valves where reliable isolation matters most. Similarly, petrochemical facilities depend on the BJ40-Q3 for tank farm valve automation under hazardous area classifications. Meanwhile, water treatment stations use the actuator on filtration system ball valves that cycle frequently throughout daily operations.
Beyond heavy industry, the actuator serves food processing lines where hygienic quarter-turn valves demand precise repetitive positioning. Pulp and paper mills integrate the BJ40-Q3 into stock preparation and chemical dosing circuits. Additionally, metallurgical plants rely on these actuators for furnace control valves enduring extreme ambient temperatures. The explosion-proof certification opens deployment into Zone 1 and Zone 2 hazardous gas locations. Its dust ignition-proof rating covers Zone 21 and Zone 22 powder environments. Moreover, fieldbus-capable variants connect directly to plant distributed control systems through Modbus, Profibus-DP, or HART networks. In conclusion, the compact dimensions and robust torque output suit tight installations well. Its intelligent diagnostics make this actuator a practical choice wherever quarter-turn automation demands reliability.
Related product: BJ-Q1 part-turn electric actuators
BJ-Q1 part-turn electric actuators deliver precise valve control for demanding industrial environments. Engineers at Suzhou Bonray designed this series for quarter-turn valves such as ball, butterfly, and plug types. Specifically, the product covers a wide torque range from 50 N·m all the way to 5000 N·m. Furthermore, it supports multi-voltage AC and DC power inputs for flexible on-site installation. Operators can choose from various output speeds to match different process requirements. This versatility makes the BJ-Q1 suitable for water treatment, power generation, and petrochemical plants.
Additionally, the actuator features intelligent communication through multiple fieldbus protocols. For example, users can integrate it via Modbus, Profibus-DP, HART, DeviceNet, or FF networks. Moreover, a built-in emergency shutdown function protects critical equipment during unforeseen events. The unit also provides 4–20 mA analog control and position feedback for seamless automation. In addition, the rugged IP65 or IP67 enclosure withstands dust, moisture, and harsh operating conditions. Consequently, maintenance teams spend less time on cleaning and repairs.
Overall, the BJ-Q1 fits a broad range of quarter-turn applications with reliable performance. Its ISO 5211 mounting interface simplifies attachment to valves from different manufacturers. As a result, system integrators save significant time during commissioning and upgrades. Ultimately, this actuator combines intelligent control, robust construction, and straightforward installation in one practical package. Therefore, plant operators and engineers trust it for long-term, trouble-free service.
