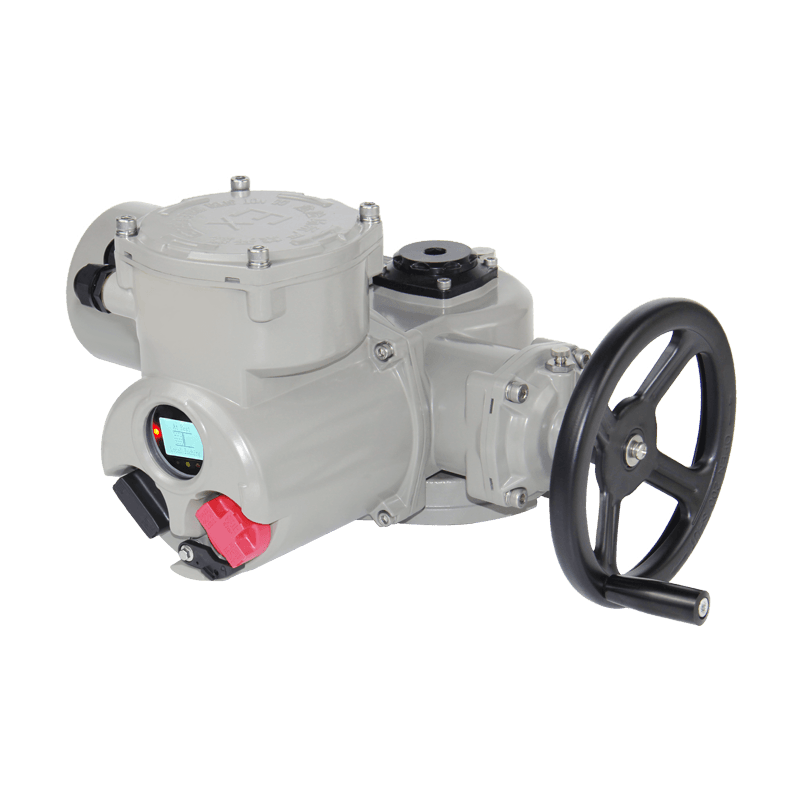

Introduction of High Torque Multi-Rotation Actuator BD120-C6
High Torque Multi-Rotation Actuator BD120-C6 brings powerful and stable driving performance for heavy-duty industrial multi-turn valves. Notably, the product releases a maximum torque of 1200 N·m and keeps steady operation under long-term heavy working conditions. Furthermore, it fits harsh working environments and serves key industries such as power, petroleum, chemical engineering and metallurgy. In terms of structural design, the actuator adopts a high-strength aluminum alloy shell with double sealing structure, which reaches IP67 protection grade. Accordingly, it can effectively isolate dust, moisture and corrosive gas to protect internal parts. Meanwhile, standard three-phase power connection ensures wide adaptability in global industrial sites. Ultimately, complete protection functions avoid motor overheat, phase loss, overload and other common faults.
In response to diverse operational needs, this high torque multi-rotation actuator supports multiple control modes to meet diverse site demands. Users can carry out local operation, remote switch control, analog regulation and ESD emergency control freely. Additionally, standard installation dimensions make installation, commissioning and replacement more convenient. As a result, the stable structure and intelligent control system reduce failure rate and maintenance cost. Consequently, the product becomes an ideal driving choice for large multi-turn valves like gate valves and globe valves. In turn, it ensures safe and efficient operation of key fluid control links.
Overall, the design of this high torque multi-rotation actuator combines high torque output, precise control and durable structure. Even under severe conditions, it can adapt to continuous operation and complex working conditions smoothly. In the long run, the product improves the stability of the whole control system and reduces unexpected shutdown risks. Most importantly, it provides users with a reliable, efficient and low-cost solution for multi-turn valve driving. Therefore, the excellent performance makes the actuator widely recognized in heavy industrial applications.
Properties of High Torque Multi-Rotation Actuator BD120-C6
- Ambient Temperature Range: -20℃～+60℃
- Option: -30℃～+70℃
- Supply Voltage: Three-phase: 380Vac±10% 50Hz±2%;
- Single-phase: 220Vac±10% 50Hz±2%
- Notes: a. Optional three-phase 400 Vac, 415 Vac, 440 Vac and single-phase 110 Vac, 115 Vac, 208 Vac, 230 Vac motors. Both 50Hz and 60Hz frequencies can be supplied. Please state requirements upon ordering;
- b. Standard motor is three-phase three-wire. Specify if three-phase four-wire system is required;
- c. If voltage/frequency deviations exceed above ranges, or operation with substantial voltage drop is desired, please indicate when ordering.
- Input Signals: DC4～20mA; Dry contact; DC24V, AC220V pulse and level signals
- Notes: DC0～20mA; DC0～10mA; DC1～5V; DC0～5V; DC0～10V; Profibus-DP; Modbus; Hart; Devicenet; FF bus or other control signals. Specify during ordering if needed.
- Output Signals: DC4～20mA; 4 field-configurable monostable output contacts, 1 remote indication monostable output contact, 1 fault alarm monostable output contact
- Notes: For additional analog feedback signals, extended contact feedback, or 4 field-configurable bistable output contacts, please specify during order placement.
- Contact Switching Capacity: 250Vac/5A or 30Vdc/5A
- Output Load Impedance: ≤750Ω
Output Speed (rpm) 16 24 36 48 72 96 Weight (kg) Case Number Three-phase Rated Torque (N.m) 1200 1200 1050 1000 850 700 66 5 Motor Power (KW) 1.3 2 2 4.3 4.3 4.3 Rated Current (A) 3.65 6 6 12.52 12.52 12.52 Locked-Rotor Current (A) 21.5 32.58 32.58 70.97 70.97 70.97
Dot-matrix LCD Display
Non-invasive Design
The High Torque Multi-Rotation Actuator BD120-C6 adopts advanced non-invasive design to make parameter setting safer and more convenient. Operators can complete calibration, query and adjustment through knobs or infrared programmers. There is no need to open the shell during commissioning, which avoids dust and moisture entering the interior. Magnetic control and built-in Hall sensors ensure stable signal transmission. The design greatly improves the reliability of the control system and prolongs the service life of electrical parts. Non-invasive operation also reduces maintenance difficulty and extends the overall service life of the equipment. It keeps the internal structure clean and stable even in harsh outdoor environments.
Absolute Encoding Position Sensor
The High Torque Multi-Rotation Actuator BD120-C6 uses a multi-turn absolute encoding position sensor to achieve high-precision position detection. Specifically, the sensor adopts non-contact measurement technology, which features high stability and long service life. In addition, it can keep accurate valve position data after power failure without battery support. Furthermore, the component provides real-time and reliable position feedback for the control system. Moreover, it supports automatic stroke self-tuning and improves the overall control accuracy of the actuator. Meanwhile, stable position signals ensure consistent movement and avoid position drift during long-term running. Therefore, this sensor becomes a core part to guarantee precise and reliable valve control.
Related Products: BD‑IIC / BDM‑IIC Series Multi‑turn Intelligent Electric Actuators
BD‑IIC and BDM‑IIC series stand as classic multi‑turn intelligent electric actuators for industrial process control. These units deliver torque from 50 N·m up to 3000 N·m and match various multi‑turn valves with stable driving force. They follow ISO5210:2017 and GB/T12222‑2023 standards for unified flange connection and easy installation. In addition, they support optional worm gearboxes to expand maximum torque up to 300000 N·m for heavy‑duty applications.
Furthermore, the series integrates multiple practical and reliable design features. They adopt dot‑matrix LCD display and non‑invasive operation for clear status reading and safe commissioning. They use dual‑seal housing to reach IP68 protection and resist dust, water and corrosion effectively. Moreover, they provide absolute encoding position and torque sensors for high‑precision measurement and stable feedback. They also support local control, remote analog control, ESD function and fieldbus communication for flexible use.
Besides, these actuators adapt to wide industrial scenarios and harsh working environments. They work safely in explosive gas and dust hazardous areas with optional explosion‑proof structures. They serve power, petroleum, chemical, metallurgy, shipbuilding, water treatment and environmental protection fields. Meanwhile, they offer switch type, intermittent modulating type and frequent modulating type to meet different working frequency demands. They become ideal supporting products for multi‑turn valve drive and automatic control systems.
