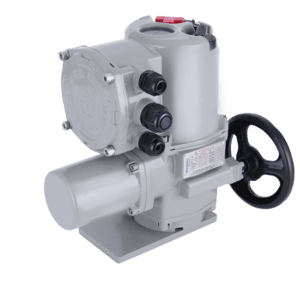

Introduction of Intelligent Valve Actuator BJ05-Q3

The BJ05-Q3 Intelligent Valve Actuator provides accurate quarter-turn positioning for ball, butterfly and plug valves, suitable for harsh industrial scenarios ranging from arctic pipeline stations to desert petrochemical plants. Featuring a high-strength aluminum alloy housing, this compact actuator achieves light weight and excellent structural rigidity under rated torque. Its ISO5211-standard mounting flange enables fast, adapter-free assembly with all standard part-turn valves. Equipped with advanced digital control systems, it outperforms traditional analog actuators in field adaptability, diagnostic capability and operational convenience.

At its core, a high-resolution absolute encoder ensures zero cumulative position error in all operating cycles. It retains absolute position data during long-term power loss, eliminating the need for backup batteries and manual zero resetting, and avoiding valve misalignment after power outages. The multi-language dot-matrix LCD display clearly shows real-time valve status, diagnostic data and fault alerts, readable in both dim indoor environments and strong outdoor sunlight. With a non-intrusive configuration design, on-site parameter setting can be completed without opening the cover, maintaining the IP67 protection level for long-term stable field operation.

This actuator supports diverse control modes: local manual operation, remote dry-contact switching, and 4–20mA analog precision regulation. It is also built-in with ESD emergency shutdown logic and a dedicated two-wire control mode, meeting the safety and fail-safe requirements of critical industrial installations. It can be directly adapted to SCADA, DCS and standalone control systems without hardware modification or firmware update. Optional communication cards support Modbus, Profibus-DP, HART and other mainstream industrial bus protocols, enabling the actuator to realize digital networking and automatic status reporting.

Product Parameters

Fieldbus Card

Fieldbus communication defines how modern actuators exchange real-time control data and diagnostic telemetry with plant-wide automation systems. The BJ05-Q3 accommodates a range of hot-swappable bus cards that users install directly into a dedicated internal slot without disturbing the main terminal block wiring or field cable terminations. For example, a single actuator can transition from standalone Modbus RTU operation to full Profibus-DP integration simply by exchanging this modular component during a scheduled maintenance window. Consequently, system integrators avoid costly hardware swaps and production downtime when network protocols change during phased plant upgrades or control system migrations.

Beyond protocol flexibility, the bus card architecture supports high-speed deterministic data throughput for time-critical valve sequencing in batch processing and emergency shutdown cascades. Meanwhile, built-in diagnostic registers continuously report signal integrity metrics, communication error counts, and node health status directly to the host controller without polling overhead. Additionally, the card implements automatic baud-rate detection and address conflict resolution, reducing commissioning errors on multi-drop networks. In short, the bus card transforms a standalone intelligent valve actuator into an active, self-monitoring participant in the plant’s digital ecosystem, delivering both control commands and rich operational telemetry over a single shielded cable pair.

Non-Intrusive Design

Field commissioning traditionally forces technicians to open electrical enclosures, exposing sensitive circuits to ambient humidity, conductive dust, and corrosive process atmospheres. The non-intrusive design of this intelligent valve actuator eliminates that exposure risk entirely from the operational workflow. Using an external magnetic setting tool or the front-panel rotary selector, operators configure limit positions, torque thresholds, dead-band parameters, and control mode assignments through the completely sealed housing wall. As a result, the IP67 protection rating remains fully uncompromised from initial bench setup through years of continuous field service under rain, dust storms, and high-pressure washdowns.

Additionally, this sealed-while-operating philosophy dramatically reduces the chance of wiring faults, condensation-induced corrosion, and accidental short circuits during routine maintenance interventions. Technicians complete full commissioning and periodic recalibration without a single screwdriver ever touching the internal electronics or terminal strips. In hazardous area installations, this approach also supports safe parameter adjustments without hot-work permits, gas-clearance procedures, or production halts. Ultimately, the non-intrusive design delivers both personnel safety and operational uptime in process environments where either failure mode carries unacceptable financial and regulatory cost.

Application Scenarios

Related product: BD/BDM-C8 Multi-turn Intelligent Electric Actuator

BD/BDM-C8 multi-turn intelligent electric actuator is a key on-site device for industrial process control. It boasts a complete range of specifications and reliable structure. Its output torque ranges from 50N.m to 3500N.m, and the torque can reach up to 300000N.m when equipped with reduction gearboxes. Besides, it follows standard flange rules and accepts customized non-standard structures to connect with various valves easily.
