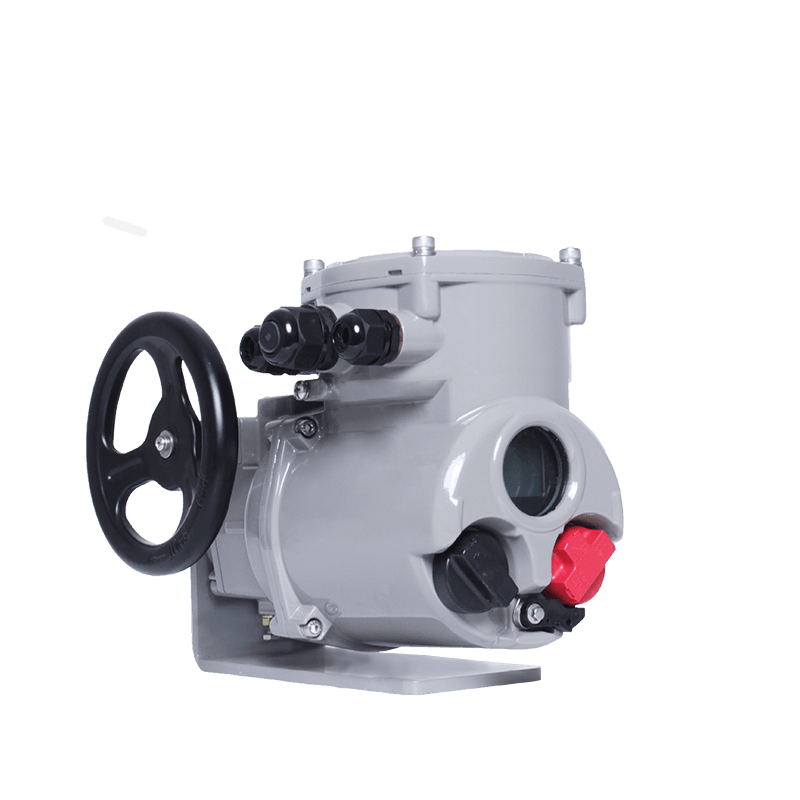

Introduction of Part-Turn Intelligent Electric Actuator BJ120-Q3
Part-Turn Intelligent Electric Actuator BJ120-Q3 serves heavy-duty drive needs for medium and large-bore industrial valves. To begin with, optimized internal transmission and refined motor layout deliver steady, abundant rated torque, and match large-size butterfly valves, ball valves as well as regulating valves for heavy industrial projects. Furthermore, complete intelligent control system gathers automatic phase correction, torque overload defense and anti-jam protection, and safeguards steady, secure valve movement. Meanwhile, compact structural design raises overall load capacity, and facilitates quick field installation alongside standard flange assembly.
Part-Turn Intelligent Electric Actuator BJ120-Q3 prioritizes environment adaptability and long-term operational stability. Firstly, premium lubricant and upgraded gear structures lower mechanical abrasion and prolong service life under frequent cyclic work. Besides, outstanding sealing design supports optional explosion-proof and dustproof configurations for dangerous chemical zones and dust-filled workshops. Finally, ISO5211 standard flange structure realizes versatile installation in various industries.
Part-Turn Intelligent Electric Actuator BJ120-Q3 Series Specifications
- Power Supply (Three-phase): 380Vac ±10%, 50Hz ±2%;
- Optional power supply: AC220–660V, 50/60Hz (compatible with both three-phase three-wire and three-phase four-wire systems; special power requirements must be specified when ordering)
- Power Supply (Single-phase): 220Vac ±10%, 50Hz ±2%;
- Optional power supply: AC220–660V, 50/60Hz (special power requirements must be specified when ordering)
- Input Signal: DC4–20mA (for modulating type only); DC24V, AC220V, or passive dry contact
- Output Signal: 4 field-configurable output contacts, 1 remote indicator output contact, 1 fault alarm output contact
- Output Contact Rating: 250Vac/5A
- Output Current Load Impedance: ≤750Ω
- Rated Torque: 1200 N.m
- Protection Rating: IP67 (IP68 optional)
- Explosion-proof Rating (Optional): Gas explosion-proof: Ex db IIB T4 Gb Dust explosion-proof: Ex tb IIIB T130℃ Db
- Insulation Class: Class F
- Ambient Temperature: -40℃ to +70℃
- Relative Humidity: ≤90% (at 20±5℃)
- Duty Cycle: Short-time duty, 15 minutes
- Lubrication: High-grade grease
- Installation: Mounting flange complies with ISO5211:2017 (GB/T12223-2023); non-standard flanges can be customized upon request
- Cable Entry: Junction box includes two M20×1.5 and one M27×2 cable entries;
- Waterproof type uses cable waterproof joints for cable diameters of 9–14mm (2 pcs) and 13–18mm (1 pc);
- Explosion-proof type requires user to supply certified explosion-proof cable glands.
Overall Dimensions of Actuators
| Power supply | Output Speed (rpm) | Rated Torque （N.M） | Motor Power (Class F) (W) | Rated Current (A) | Locked Current （A） | Maximum Valve Stem Diameter(mm) | Manual Speed Ratio | Weight (kg) |
| Three-phase | 0.5 | 1200 | 370 | 1.31 | 4.6 | 42 | 87 | 26.6 |
| 1 | ||||||||
| Single-phase | 0.5 | 1200 | 300 | 2.59 | 7.1 | 42 | 87 | 26.6 |
Core Intelligent Hardware Configuration
Part-Turn Intelligent Electric Actuator BJ120-Q3 is equipped with professional intelligent hardware, so it fully supports high-load and high-precision valve control. First of all, it fits expandable fieldbus card to access multiple industrial bus systems, and hence finishes remote data transmission and real-time command interaction. Besides, it embeds high-stability absolute encoder to realize high-precision valve position detection; meanwhile, this component keeps position memory after power off, and accordingly removes position deviation after equipment restart.
Wide Range Application Scenarios
In addition, Part-Turn Intelligent Electric Actuator BJ120-Q3 is widely applied in heavy industrial fields, and thus perfectly satisfies various working demands requiring medium and large output torque. For one thing, onsite process pipeline control covers chemical, electric power, metallurgy and environmental protection industries, meanwhile fulfilling practical valve driving needs from municipal water conservancy, sewage disposal and marine engineering projects. For another, different working surroundings ranging from indoor workshops to exposed outdoor fields suit its operational features well, so the whole equipment can sustain stable, durable and consistent operating performance throughout the whole year.
Reliable Operation & Low Maintenance Cost
Related product:BD-C6 Multi-turn Intelligent Electric Actuator
The BD-C6 is a reliable and economical multi-turn intelligent electric actuator. Its aluminum alloy shell features a compact and elegant overall structure. Double sealing craft helps the device reach IP67 protection performance. Standard and customized flanges satisfy diverse connection demands.
This product line contains switch and intermittent regulation two main types. Clear rules define the working frequency and continuous running time. It follows ISO and JB industrial flange standards for easy installation. Abundant signal terminals adapt to various mainstream control systems. The actuator gains wide popularity in industrial fluid pipeline projects.
