Description

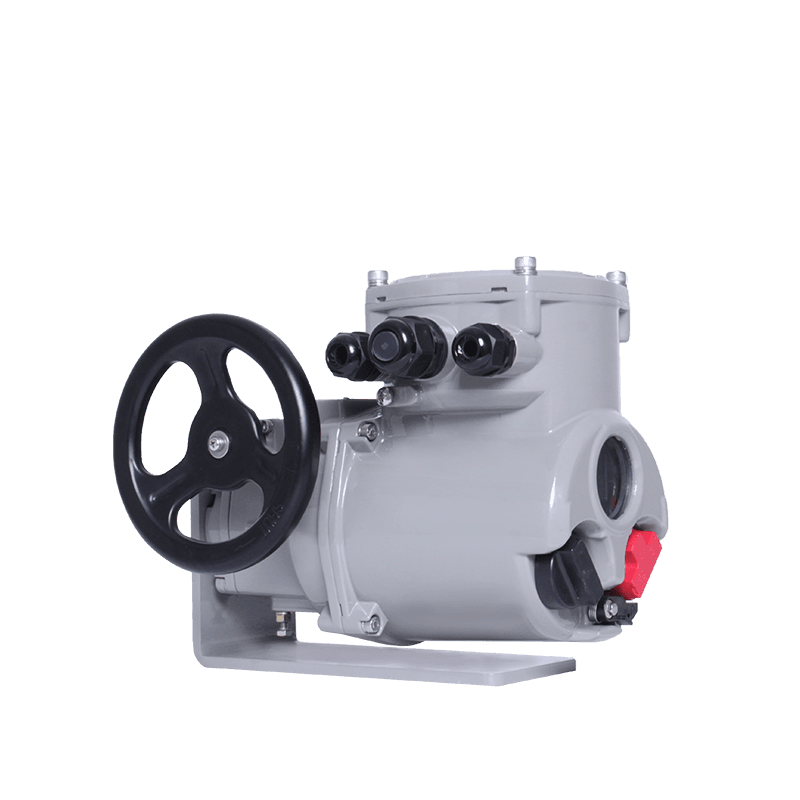

Introduction of Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3
Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 focuses on high-torque industrial valve driving. Accordingly, it satisfies heavy-duty matching requirements for large-caliber pipeline equipment. To begin with, optimized internal drive structure and upgraded motor configuration deliver strong steady output torque. These improvements cope with oversized ball valves and butterfly valves used in large-scale industrial construction. Furthermore, full-range intelligent control framework integrates automatic phase correction, over-torque protection and anti-blocking safeguard. Such design effectively secures continuous and safe valve switch movement. Meanwhile, refined compact outline improves overall load resistance. It brings great convenience for on-site flange installation and equipment assembly.
Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 overcomes performance drawbacks of traditional high-torque actuators. In turn, the model upgrades overall intelligent operating experience. Specifically, built-in high-definition display realizes visualized data browsing. Field staff can finish parameter setup and real-time fault inspection directly. In addition, abundant remote control options come with reserved bus expansion space. The unit fits centralized automatic management for large industrial automation production lines.
Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 attaches great importance to environmental adaptability and long-term running reliability. Firstly, high-performance grease and optimized gear components lower mechanical wear. They extend service cycle under frequent repeated operation. Besides, premium double-sealed structure supports optional explosion-proof and dustproof variants. The actuator adapts to flammable chemical workshops and high-dust production sites. Finally, products follow ISO5211 international flange standards. They achieve universal installation across multiple industrial categories.
Core Intelligent Hardware Configuration
Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 carries complete professional intelligent hardware. Consequently, it delivers reliable high-torque precise control. First of all, expandable fieldbus card links diverse industrial bus systems. It completes remote data transmission as well as real-time instruction interaction. Besides, built-in high-precision absolute encoder detects accurate valve position. It retains position data after power outage to avoid position drift after equipment restart.
Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 Specifications
| Power supply | Output Speed (rpm) | Rated Torque （N.M） | Motor Power (Class F) (W) | Rated Current (A) | Locked Current （A） | Maximum Valve Stem Diameter(mm) | Manual Speed Ratio | Weight (kg) |
| Three-phase | 0.5 | 1800 | 500 | 1.75 | 5.8 | 42 | 87 | 27.1 |
| 1 | ||||||||
| Single-phase | 0.5 | 1800 | 530 | 3.21 | 14.28 | 42 | 87 | 27.1 |
| 1 |
What protocols do fieldbus cards support?
Equipped with optional fieldbus cards compatible with Profibus-DP, Modbus, Devicenet, FF and Hart protocols, BONRay multi-turn electric actuators can connect seamlessly with mainstream industrial control systems. These industrial-grade communication modules adopt electrical isolation design for stable data transmission. They allow flexible networking for different working conditions, and the whole bus network will keep running if one device is detached. Remote parameter setting, status checking and fault diagnosis can be realized via the bus, which simplifies daily operation and maintenance effectively.
Wide Range Application Scenarios
In addition, Part-Turn Intelligent Electric Actuated Valve Intelligent Actuator BJ180-Q3 gains broad usage in heavy industries. Hence, it fulfills all kinds of high-torque application demands. For one thing, industrial pipeline control covers chemical, power, metallurgy and environmental protection fields. It also serves municipal water treatment and offshore engineering valve matching. For another, indoor production workshops and open-air outdoor environments suit its running features. The equipment maintains stable and durable performance all year round.
